Process Applications
- Soldering: nitrogen creates an inert atmosphere, preventing the oxidation of solder joints and improving the strength of the joint and appearance
- Purging: nitrogen is used to remove reactive gases and moisture from semiconductor fabrication chambers, PCB lines and chemical vapor systems
Safety & Storage
- Fire prevention: in cleanrooms and manufacturing areas to prevent ignition by reducing oxygen levels without damaging electronics
- Storage: nitrogen is blanketed over stored electronic components to create moisture and contaminate free environments
- Packaging: introduced into packaging prior to sealing to prevent corrosion, oxidation, and electrostatic damage
Generon recommendation: Standard Design Membrane and Pressure Swing Adsorption Units
Nitrogen On Wall Panel Dimensions: 50” L x 8” W x 43” H Light Weight: 75lbs
4000 Series Cabinet Unit Footprint: 32” L x 20” W x 56” H Nitrogen Flows up to 600 SCFM
Modular Bank PSA Footprint: 65” L x 24” W x 85” H Scalable up to 5 banks

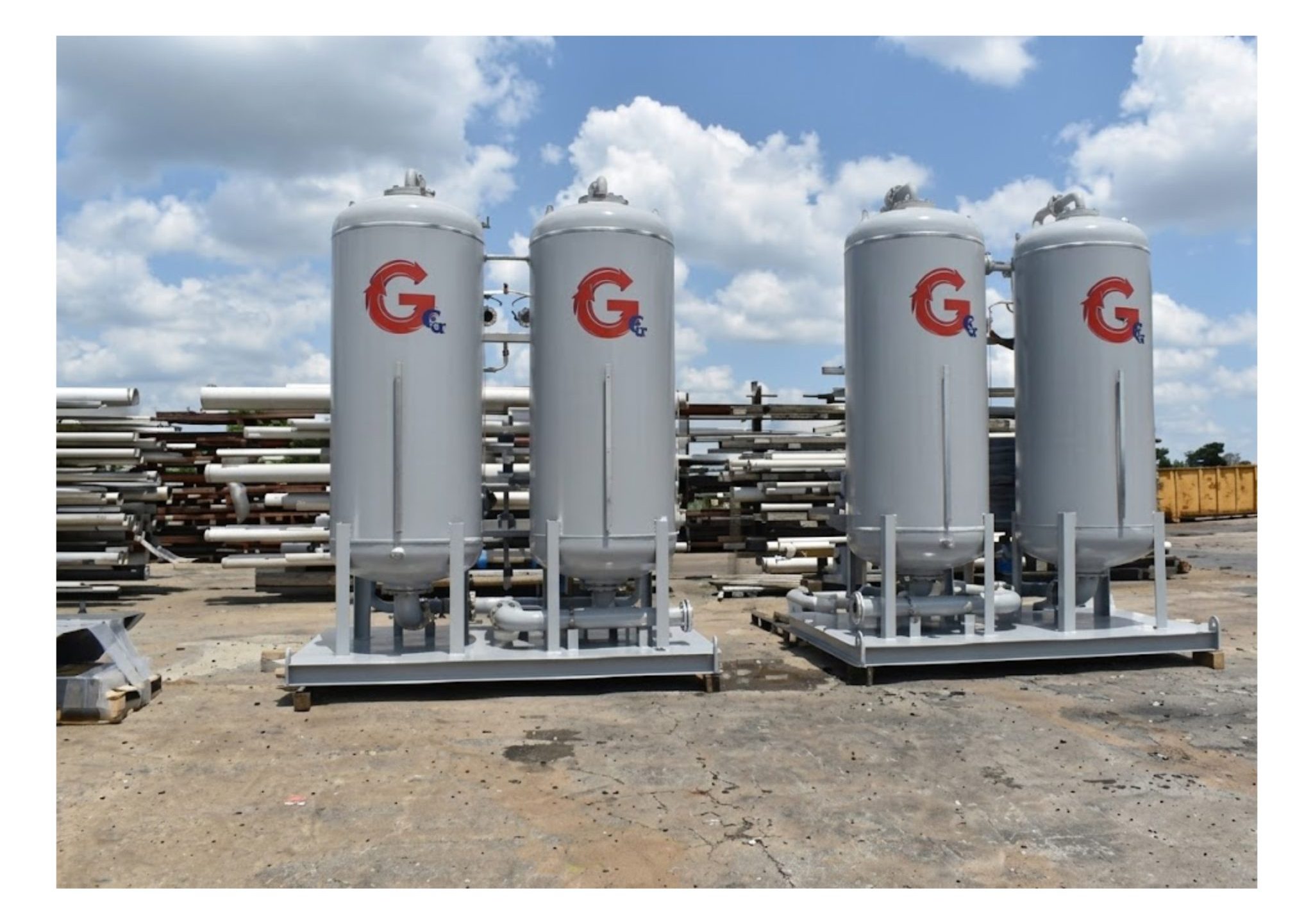

Twin Town PSA Medium to Large Flow Rates Outdoor Installation
Project Example | Electronics Manufacturing
| Requisition |
|
|
|
|
|
|
|
| Solution |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
